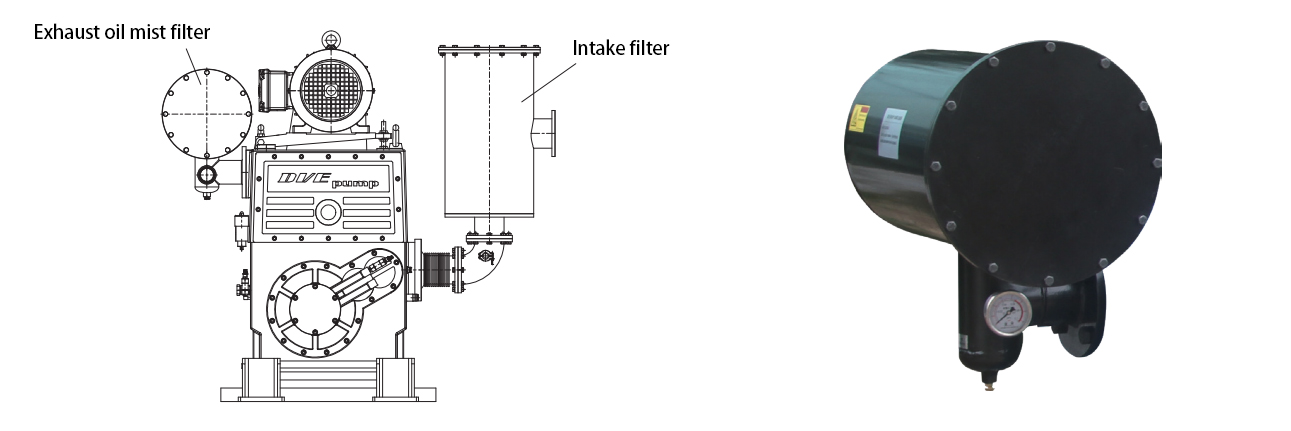

My company developed OMF series outlet oil mist filter for rotary piston vacuum pumps and rotary vane vacuum pumps. These oil mist filters can filtrate oil mist effectively which discharged by vacuum pumps. Reducing environmental pollution significantly and reducing the ail consumption effectively.OMF oil mist filters have bypass valves and exhaust pressure displays. If exhaust pressure is too high, the bypass valve will be opened automatically for reducing pressure. Compared to other general oil mist filters, OMF oil mist filters are more secure, more reliable. The outer layer of the filter core has a removable cloth for replacing or washing when the cloth is dirty, greatly extending the life of the filter core.
OUTLET OIL MIST FILTERS
Model OMF-40 OMF-50 OMF-63 OMF-80 OMF-100 OMF-150 OMF-200 OMF-250
Diameter (mm) DN40 DN50 DN63 DN80 DN100 DN150 DN200 DN250
Rated gas flow (L/s) 30 60 150 220 300 600 1000 1600
Bypass valve opening pressure (MPa) Gauge pressure 0.025, absolute pressure 0.125
Withstand pressure (MPa) Gauge pressure 0.05, absolute pressure 0.15

OMF VACUUM PUMP OUTLET OIL MIST

Model OMF-40 OMF-50 OMF-63 OMF-80 OMF-100 OMF-125 OMF-150
Outlet Dia ( mm ) DN40 DN50 DN63 DN80 DN100 DN125 DN150
Rated Gas Flow ( L/s ) 30 60 150 220 300 450 600
By Pass Valve WorkingPressure (MPa)

Relative Pressure 0.025

Absolute Pressure 0.125

Max DischargePressure (MPa)

Relative Pressure 0.5

Absolute Pressure 0.15

Connected VacuumPump Model

2H-15DVA

2H-15DVW

H-25DVA

H-25DVW

2H-30DV

2H-45DVA

H-50DV

H-60DVA

2H-50DV

2H-70DV

2H-80DV

2H-100DV3

H-70DV

H-100DV

H-120DV

2H-100DV

2H-120DV

2H-160DV

H-150DV

H-160DV

H-215DV



2H-150DV

2H-225DV

H-225DV

H-300DV

2H-300DV

H-400DV

2H-340

H-450

2H-450

H-600DV

Net Weight (kg) 13 17 23 35 60  80 110





Pumping Spped Vs Inlet Pressure Curve
