Vacuum Pump System Custom

Advanced structure, excellent performances, easy to use, high reliability and durability

Vacuum Pump System Manufacturers

Development Vacuum Equipment CO., Ltd was established in 2000 with rich industry experience. It is a professional Vacuum Pump System Manufacturers specializing in the manufacture and design of various wholesale vacuum pump system. After 20 years of hard work, the company has developed rapidly. At present, DVE has established a relatively complete quality management system and large-scale design and manufacturing capabilities. As a Vacuum Pump System Suppliers specializing in custom vacuum pump system, we can customize corresponding products according to customer requirements or parameters. At the same time, as an ISO-9001 certified manufacturer, we maintain manufacturing quality. Our products are manufactured in accordance with European and international standards and have successfully passed the CE certification test.
Vacuum Pump Systems

Vacuum Pump Systems

Widely used in vacuum coating, vacuum metallurgy, vacuum heat treatment, vacuum drying, vacuum impregnation, vacuum strainer, poly-silicon production, aerospace simulation and so on.


Specifications

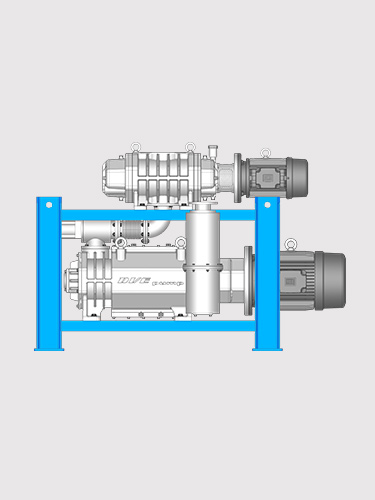

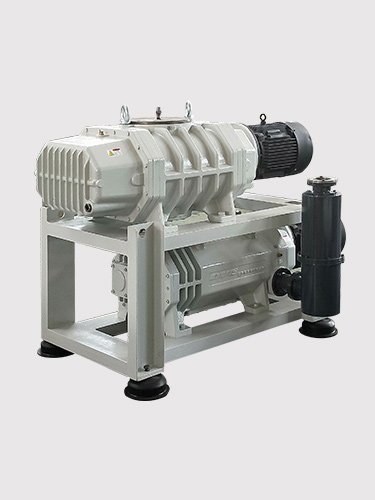

One Roots with 2-Stage Rotary Piston Vacuum Pump Systems
Model Main Pump Backing Pump

Displacement

(L/s，50Hz)

Ultimate Partial Pressure

(Pa)

Ultimate Total Pressure

(Pa)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
JZ2H70-15A ZJ-70DV1 2H-15DVA 70 0.02 0.5 3.3 80 40
JZ2H70-15W ZJ-70DV1 2H-15DVW 70 3.3 80 40
JZ2H150-30 ZJ-150DV1 2H-30DV 150 6.2 100 50
JZ2H150-45A ZJ-150DV1 2H-45DVA 150 6.2 100 50
JZ2H150-50 ZJ-150DV1 2H-50DV 150 7.7 100 63
JZ2H220-45A ZJ-220DV1 2H-45DVA 220 7 100 50
JZ2H220-50 ZJ-220DV1 2H-50DV 220 8.5 100 63
JZ2H220-60 ZJ-220DV1 2H-60DV 220 8.5 100 63
JZ2H300-70 ZJ-300DV1 2H-70DV 300 11.5 160 63
JZ2H300-90 ZJ-300DV1 2H-90DV 300 11.5 160 63
JZ2H600-100 ZJ-600DV1 2H-100DV 600 18.5 200 80
ZJ-600DV2
JZP2H600-100 ZJP-600DV1
JZ2H600-120 ZJ-600DV1 2H-120DV 600 18.5 200 80
ZJ-600DV2
JZP2H600-120 ZJP-600DV1
JZ2H600-150 ZJ-600DV1 2H-150DV 600 22.5 200 100
ZJ-600DV2
JZP2H600-150 ZJP-600DV1
JZ2H600-160 ZJ-600DV1 2H-160DV 600 22.5 200 80
ZJ-600DV2
JZP2H600-160 ZJP-600DV1
JZ2H1000-150 ZJ-1000DV1 2H-150DV 1000 26 200 100
JZ2H1000-160 ZJ-1000DV1 2H-160DV 1000 26 200 80
JZ2H1000-225 ZJ-1000DV1 2H-225DV 1000 33 200 100
JZ2H1200-150 ZJ-1200DV1 2H-150DV 1200 26 250 100
ZJ-1200DV2
JZP2H1200-150 ZJP-1200DV1
JZ2H1200-160 ZJ-1200DV1 2H-160DV 1200 26 250 80
ZJ-1200DV2
JZP2H1200-160 ZJP-1200DV1
JZ2H1200-225 ZJ-1200DV1 2H-225DV 1200
ZJ-1200DV2
JZP2H1200-225 ZJP-1200DV1
JZ2H2000-225 ZJ-2000DV1 2H-225DV 2000 37 250 100
ZJ-2000DV2
JZ2H2000-300 ZJ-2000DV1 2H-300DV 2000 45 250 125
ZJ-2000DV2
JZ2H2500-225 ZJP-2500DV1 2H-225DV 2500 44 320 100
JZP2H2500-300 ZJP-2500DV1 2H-300DV 2500 52 320 125
JZP2H2500-2×150 ZJP-2500DV1 2×2H-150DV 2500 52 320 2×100
JZP2H2500-2×160 ZJP-2500DV1 2×2H-160DV 2500 52 320 2×80
JZP2H2500-2×225 ZJP-2500DV1 2×2H-225DV 2500 66 320 2×100
JZ2H2800-300 ZJ-2800DV1 2H-300DV 2800 52 320 125
ZJ-2800DV2
JZ2H2800-450 ZJ-2800DV1 2H-450DV 2800 67 320 150
ZJ-2800DV2
JZ2H2800-2×150 ZJ-2800DV1 2×2H-150DV 2800 52 320 2×100
ZJ-2800DV2
JZ2H2800-2×160 ZJ-2800DV1 2×2H-160DV 2800 52 320 2×80
ZJ-2800DV2
JZ2H2800-2×225 ZJ-2800DV1 2×2H-225DV 2800 66 320 2×100
ZJ-2800DV2
JZ2H4000-300 ZJ-4000DV1 2H-300DV 4000 60 320 125
ZJ-4000DV2
JZ2H4000-450 ZJ-4000DV1 2H-450DV 4000 75 320 150
ZJ-4000DV2
JZ2H4000-2×225 ZJ-4000DV1 2×2H-225DV 4000 74 320 2×100
ZJ-4000DV2
JZ2H4000-2×300 ZJ-4000DV1 2×2H-300DV 4000 90 320 2×125
ZJ-4000DV2
JZ2H5500-450 ZJ-5500DV1 2H-450DV 5500 82 400 150
ZJ-5500DV2
JZ2H5500-2×300 ZJ-5500DV1 2×2H-300DV 5500 97 400 2×125
ZJ-5500DV2
JZ2H5500-2×450 ZJ-5500DV1 2×2H-450DV 5500 127 400 2×150
ZJ-5500DV2

One Roots with 1-Stage Rotary Piston Vacuum Pump Systems

Model Main Pump Backing Pump

Displacement

(L/s，50Hz)

Ultimate Partial Pressure

(Pa)

Ultimate Total Pressure

(Pa)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
JZH70-25A ZJ-70DV1 H-25DVA 70 0.05 0.8 1.1 +2.2 80 40
JZH70-25W ZJ-70DV1 H-25DVW 70 1.1 +2.2 80 40
JZH150-50 ZJ-150DV1 H-50DV 150 2.2+4 100 50
JZH150-60A ZJ-150DV1 H-60DVA 150 2.2+4 100 50
JZH220-50 ZJ-220DV1 H-50DV 220 3+4 100 50
JZH220-60A ZJ-220DV1 H-60DVA 220 3+4 100 50
JZH220-70 ZJ-220DV1. H-70DV 220 3+5.5 100 63
JZH300-60A ZJ-300DV1 H-60DVA 300 4+4 160 50
JZH300-70 ZJ-300DV1 H-70DV 300 4+5.5 160 63
JZH300-80 ZJ-300DV1 H-80DV 300 4+5.5 160 63
JZH300-100 ZJ-300DV1 H-100DV 300 4+7.5 160 63
JZPH600-100 ZJP-600DV1 H-100DV 600 7.5+7.5 200 63
JZH600-100 ZJ-600DV1 H-100DV 600 7.5+7.5 200 63
ZJ-600DV2
JZPH600-120 ZJP-600DV1 H-120DV 600 7.5+7.5 200 63
JZH600-120 ZJ-600DV1 H-120DV 600 7.5+7.5 200 63
ZJ-600DV2
JZPH600-150 ZJP-600DV1 H-150DV 600 7.5+11 200 80
JZH600-150 ZJ-600DV1 H-150DV 600 7.5+11 200 80
ZJ-600DV2
JZPH600-160 ZJP-600DV1 H-160DV 600 7.5+11 200 80
JZH600-160 ZJ-600DV1 H-160DV 600 7.5+11 200 80
ZJ-600DV2
JZPH600-215 ZJP-600DV1 H-215DV   7.5+15 200 80
JZH600-215 ZJ-600DV1 H-215DV 600 7.5+15 200 80
ZJ-600DV2
JZPH600-225 ZJP-600DV1 H-225DV   7.5+15 200 100
JZH600-225 ZJ-600DV1 H-225DV 600 7.5+15 200 100
ZJ-600DV2
JZH1000-150 ZJ-1000DV1 H-150DV 1000 11+11 200 80
JZH1000-160 ZJ-1000DV1 H-160DV 1000 11+11 200 80
JZH1000-215 ZJ-1000DV1 H-215DV 1000 11+15 200 80
JZH1000-225 ZJ-1000DV1 H-225DV 1000 11+15 200 100
JZH1000-300 ZJ-1000DV1 H-300DV 1000 11 +22 200 100
JZPH1200-150 ZJP-1200DV1 H-150DV 1200 11+11 250 80
JZH1200-150 ZJ-1200DV1 H-150DV 1200 11+11 250 80
ZJ-1200DV2
JZPH1200-160 ZJP-1200DV1 H-160DV 1200 11+11 250 80
JZH1200-160 ZJ-1200DV1 H-160DV 1200 11+11 250 80
ZJ-1200DV2
JZPH1200-215 ZJP-1200DV1 H-215DV 1200 11+15 250 80
JZH1200-215 ZJ-1200DV1 H-215DV 1200 11+15 250 80
ZJ- 200DV2
JZPH1200-225 ZJP-1200DV1 H-225DV 1200 11+15 250 100
JZH1200-225 ZJ-1200DV1 H-225DV 1200 11+15 250 100
ZJ-1200DV2
JZPH1200-300 ZJP-1200DV1 H-300DV 1200 11+22 250 100
JZH1200-300 ZJ-1200DV1 H-300DV 1200 11+22 250 100
ZJ-1200DV2
JZPH1200-400 ZJP-1200DV1 H-400DV 1200 11 +30 250 125
JZH1200-400 ZJ-1200DV1 H-400DV 1200 11 +30 250 125
ZJ-1200DV2
JZH2000-215 ZJ-2000DV1 H-215DV 2000 15+15 250 80
ZJ-2000DV2
JZH2000-225 ZJ-2000DV1 H-225DV 2000 15+15 250 100
ZJ-2000DV2
JZH2000-300 ZJ-2000DV1 H-300DV 2000 15+22 250 100
ZJ-2000DV2
JZH2000-400 ZJ-2000DV1 H-400DV 2000 15+30 250 125
ZJ-2000DV2
JZH2000-600 ZJ-2000DV1 H-600DV 2000 15+45 250 150
ZJ-2000DV2
JZH2000-2×150 ZJ-2000DV1 2×H-150DV 2000 15+2×11 250 2×80
ZJ-2000DV2
JZH2000-2×160 ZJ-2000DV1 2×H-160DV 2000 15+2×11 250 2×80
ZJ-2000DV2
JZH2000-2×215 ZJ-2000DV1 2×H-215DV 2000 15+2×15 250 2×80
ZJ-2000DV2
JZH2000-2×225 ZJ-2000DV1 2×H-225DV 2000 15+2×15 250 2×100
ZJ-2000DV2
JZH2000-2×300 ZJ-2000DV1 2×H-300DV 2000 15+2×22 250 2×100
ZJ-2000DV2
JZH2000-2×400 ZJ-2000DV1 2×H-400DV 2000 15+2×30 250 2×125
ZJ-2000DV2
JZPH2500-300 ZJP-2500DV1 H-300DV 2500 22+22 320 100
JZPH2500-400 ZJP-2500DV1 H-400DV 2500 22+30 320 125
JZPH2500-600 ZJP-2500DV1 H-600DV 2500 22+45 320 150
JZPH2500-2×150 ZJP-2500DV1 2×H-150DV 2500 22+2×11 320 2×80
JZPH2500-2×160 ZJP-2500DV1 2×H-160DV 2500 22+2×11 320 2×80
JZPH2500-2×215 ZJP-2500DV1 2×H-215DV 2500 22+2×15 320 2×80
JZPH2500-2×225 ZJP-2500DV1 2×H-225DV 2500 22+2×15 320 2×100
JZPH2500-2×300 ZJP-2500DV1 2×H-300DV 2500 22+2×22 320 2×100
JZPH2500-2×400 ZJP-2500DV1 2×H-400DV 2500 22+2×30 320 2×125
JZH2800-300 ZJ-2800DV1 H-300DV 2800 22+22 320 100
ZJ-2800DV2
JZH2800-400 ZJ-2800DV1 H-400DV 2800 22+30 320 125
ZJ-2800DV2
JZH2800-600 ZJ-2800DV1 H-600DV 2800 22+45 320 150
ZJ-2800DV2
JZH2800-2×150 ZJ-2800DV1 2×H-150DV 2800 22+2×11 320 2×80
ZJ-2800DV2
JZH2800-2×160 ZJ-2800DV1 2×H-160DV 2800 22+2×11 320 2×80
ZJ-2800DV2
JZH2800-2×215 ZJ-2800DV1 2×H-215DV 2800 22+2×15 320 2×80
ZJ-2800DV2
JZH2800-2×225 ZJ-2800DV1 2×H-225DV 2800 22+2×15 320 2×100
ZJ-2800DV2
JZH2800-2×300 ZJ-2800DV1 2×H-300DV 2800 22+2×22 320 2×100
ZJ-2800DV2
JZH2800-2×400 ZJ-2800DV1 2×H-400DV 2800 22+2×30 320 2×125
ZJ-2800DV2
JZH4000-400 ZJ-4000DV1 H-400DV 4000 30+30 320 125
ZJ-4000DV2
JZH4000-600 ZJ-4000DV1 H-600DV 4000 30+45 320 150
ZJ-4000DV2
JZH4000-2×300 ZJ-4000DV1 2×H-300DV 4000 30+2×22 320 2×100
ZJ-4000DV2
JZH4000-2×400 ZJ-4000DV1 2×H-400DV 4000 30+2×30 320 2×125
ZJ-4000DV2
JZH4000-2×600 ZJ-4000DV1 2×H-600DV 4000 30+2×45 320 2×150
ZJ-4000DV2
JZH5500-400 ZJ-5500DV1 H-400DV 5500 37+30 400 125
ZJ-5500DV2
JZH5500-600 ZJ-5500DV1 H-600DV 5500 37+45 400 150
ZJ-5500DV2
JZH5500-2×300 ZJ-5500DV1 2×H-300DV 5500 37+2×22 400 2×100
ZJ-5500DV2
JZH5500-2×400 ZJ-5500DV1 2×H-400DV 5500 37+2×30 400 2×125
ZJ-5500DV2
JZH5500-2×600 ZJ-5500DV1 2×H-600DV 5500 37+2×45 400 2×150
ZJ-5500DV2
JZH5500-3×300 ZJ-5500DV1 3×H-300DV 5500 37+3×22 400 2×100
ZJ-5500DV2
JZH5500-3×400 ZJ-5500DV1 3×H-400DV 5500 37+3×30 400 2×125
ZJ-5500DV2
JZH5500-3×600 ZJ-5500DV1 3×H-600DV 5500 37+3×45 400 2×150
ZJ-5500DV2

Two Roots with 2-Stage Rotary Piston Vacuum Pump Systems

Model Main Pump Middle Pump Backing Pump

Displacement

(L/s，50Hz)

Ultimate Partial Pressure

(Pa)

Ultimate Total Pressure

(Pa)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
J2Z2H220-70-15A ZJ-220DV1 ZJ-70DV1 2H-15DVA 220 0.01 0.3 3+1.1+2.2 100 40
J2Z2H220-70-15W ZJ-220DV1 ZJ-70DV1 2H-15DVW 220 3+1.1+2.2 100 40
J2Z2H220-70-30 ZJ-220DV1 ZJ-70DV1 2H-30DV 220 3+1.1+4 100 50
J2Z2H300-70-30 ZJ-300DV1 ZJ-70DV1 2H-30DV 300 4+1.1+4 160 50
J2Z2H300-150-45A ZJ-300DV1 ZJ-150DV1 2H-45DVA 300 4+2.2+4 160 50
J2Z2H300-150-50 ZJ-300DV1 ZJ-150DV1 2H-50DV 300 4+2.2+5.5 160 63
J2Z2H300-150-60 ZJ-300DV1 ZJ-150DV1 2H-60DV 300 4+2.2+5.5 160 63
J2Z2H600-150-60 ZJ-600DV1 ZJ-150DV1 2H-60DV 600 7.5+2.2+5.5 200 63
J2Z2H600-220-70 ZJ-600DV1 ZJ-220DV1 2H-70DV 600 7.5+3+7.5 200 63
J2Z2H600-220-80 ZJ-600DV1 ZJ-220DV1 2H-80DV 600 7.5+3+7.5 200 63
J2Z2H1000-300-100 ZJ-1 000DV1 ZJ-300DV1 2H-100DV 1000 11+4+11 200 80
J2Z2H1000-300-120 ZJ-1 000DV1 ZJ-300DV1 2H-120DV 1000 11+4+11 200 80
J2Z2H1200-300-120 ZJ-1 200DV1 ZJ-300DV1 2H-120DV 1200 11+4+11 250 80
J2Z2H2000-600-160 ZJ-1200DV1 ZJ-600DV1 2H-160DV 2000 15+7.5+15 250 80
J2Z2H2000-600-225 ZJ-2000DV1 ZJ-600DV1 2H-225DV 2000 15+7.5+22 250 100
J2ZP2H2500-600-225 ZJP-2500DV1 ZJ-600DV1 2H-225DV 2500 22+7.5+22 320 100
J2ZP2H2500-1000-300 ZJP-2500DV1 ZJ-1000DV1 2H-300DV 2500 22+11+30 320 125
J2Z2H2800-600-225 ZJ-2800DV1 ZJ-600DV1 2H-225DV 2800 22+7.5+22 320 100
J2Z2H2800-1000-300 ZJ-2800DV1 ZJ-1000DV1 2H-300DV 2800 22+11+30 320 125
J2Z2H2800-1200-450 ZJ-2800DV1 ZJ-1200DV1 2H-450DV 2800 22+11+45 320 150
J2Z2H2800-1200-2×300 ZJ-2800DV1 ZJ-1200DV1 2×2H-300DV 2800 22+11+2×30 320 2×125
J2Z2H4000-1000-300 ZJ-4000DV1 ZJ-1000DV1 2H-300DV 4000 30+11+30 320 125
J2Z2H4000-1200-450 ZJ-4000DV1 ZJ-1200DV1 2H-450DV 4000 30+11+45 320 150
J2Z2H4000-1200-2×300 ZJ-4000DV1 ZJ-1200DV1 2×2H-300DV 4000 30+11+2×30 320 2×125
J2Z2H5500-1200-300 ZJ-5500DV1 ZJ-1200DV1 2H-300DV 5500 37+11+30 400 125
J2Z2H5500-1200-450 ZJ-5500DV1 ZJ-1200DV1 2H-450DV 5500 37+11+45 400 150
J2Z2H5500-1200-2×300 ZJ-5500DV1 ZJ-1200DV1 2×2H-300DV 5500 37+11+2×30 400 2×125
J2Z2H5500-2000-2×300 ZJ-5500DV1 ZJ-2000DV1 2×2H-300DV 5500 37+15+2×30 400 2×125
J2Z2H5500-2000-2×450 ZJ-5500DV1 ZJ-2000DV1 2×2H-450DV 5500 37+15+2×45 400 2×150

Two Roots with 1-Stage Rotary Piston Vacuum Pump Systems

Model Main Pump Middle Pump Backing Pump

Displacement

(L/s，50Hz)

Ultimate Partial Pressure

(Pa)

Ultimate Total Pressure

(Pa)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
J2ZH220-70-25A ZJ-220DV1 ZJ-70DV1 H-25DVA 220 0.02 0.5 3+1.1+2.2 100 40
J2ZH220-70-25W ZJ-220DV1 ZJ-70DV1 H-25DVW 220 3+1.1+2.2 100 40
J2ZH300-70-25A ZJ-300DV1 ZJ-70DV1 H-25DVA 300 4+1.1+2.2 160 40
J2ZH300-70-25W ZJ-300DV1 ZJ-70DV1 H-25DVW 300 4+1.1+2.2 160 40
J2ZH600-150-50 ZJ-600DV1 ZJ-150DV1 H-50DV 600 7.5+2.2+4 200 50
J2ZH600-150-60A ZJ-600DV1 ZJ-150DV1 H-60DVA 600 7.5+2.2+4 200 50
J2ZH600-150-70 ZJ-600DV1 ZJ-150DV1 H-70DV 600 7.5+2.2+5.5 200 63
J2ZH600-220-80 ZJ-600DV1 ZJ-220DV1 H-80DV 600 7.5+3+5.5 200 63
J2ZH600-220-100 ZJ-600DV1 ZJ-220DV1 H-100DV 600 7.5+3+7.5 200 63
J2ZH1000-300-100 ZJ-1000DV1 ZJ-300DV1 H-100DV 1000 11+4+7.5 200 63
J2ZH1000-300-120 ZJ-1000DV1 ZJ-300DV1 H-120DV 1000 11+4+7.5 200 63
J2ZH1200-300-100 ZJ-1200DV1 ZJ-300DV1 H-100DV 1200 11+4+7.5 250 63
J2ZH1200-300-120 ZJ-1200DV1 ZJ-300DV1 H-120DV 1200 11+4+7.5 250 63
J2ZH1200-300-150 ZJ-1200DV1 ZJ-300DV1 H-150DV 1200 11+4+11 250 80
J2ZH1200-300-160 ZJ-1200DV1 ZJ-300DV1 H-160DV 1200 11+4+11 250 80
J2ZH1200-1000/2-215 ZJ-1200DV1 ZJ-1000DV1 H-215DV 1200 11+11+15 250 80
J2ZH2000-300-150 ZJ-2000DV1 ZJ-300DV1 H-150DV 2000 15+4+11 250 80
J2ZH2000-300-160 ZJ-2000DV1 ZJ-300DV1 H-160DV 2000 15+4+11 250 80
J2ZH2000-600-215 ZJ-2000DV1 ZJ-600DV1 H-215DV 2000 15+7.5+15 250 80
J2ZH2000-600-225 ZJ-2000DV1 ZJ-600DV1 H-225DV 2000 15+7.5+15 250 100
J2ZH2000-600-300 ZJ-2000DV1 ZJ-600DV1 H-300DV 2000 15+7.5+15 250 100
J2ZH2000-600-2×150 ZJ-2000DV1 ZJ-600DV1 2×H-150DV 2000 15+7.5+2×11 250 2×80
J2ZH2000-600-2×160 ZJ-2000DV1 ZJ-600DV1 2×H-160DV 2000 15+7.5+2×11 250 2×80
J2ZPH2500-600-150 ZJP-2500DV1 ZJ-600DV1 H-150DV 2500 22+7.5+11 320 80
J2ZPH2500-600-160 ZJP-2500DV1 ZJ-600DV1 H-160DV 2500 22+7.5+11 320 80
J2ZPH2500-600-215 ZJP-2500DV1 ZJ-600DV1 H-215DV 2500 22+7.5+15 320 80
J2ZPH2500-600-225 ZJP-2500DV1 ZJ-600DV1 H-225DV 2500 22+7.5+15 320 100
J2ZPH2500-600-300 ZJP-2500DV1 ZJ-600DV1 H-300DV 2500 22+7.5+22 320 100
J2ZPH2500-1000-300 ZJP-2500DV1 ZJ-1000DV1 H-300DV 2500 22+11+22 320 100
J2ZPH2500-1000-400 ZJP-2500DV1 ZJ-1000DV1 H-400DV 2500 22+11+30 320 125
J2ZPH2500-1000-2×150 ZJP-2500DV1 ZJ-1000DV1 2×H-150DV 2500 22+11+2×11 320 2×80
J2ZPH2500-1000-2×160 ZJP-2500DV1 ZJ-1000DV1 2×H-160DV 2500 22+11+2×11 320 2×80
J2ZPH2500-1000-2×215 ZJP-2500DV1 ZJ-1000DV1 2×H-215DV 2500 22+11+2×15 320 2×80
J2ZPH2500-1000-2×225 ZJP-2500DV1 ZJ-1000DV1 2×H-225DV 2500 22+11+2×15 320 2×100
J2ZH2800-600-215 ZJ-2800DV1 ZJ-600DV1 H-215DV 2800 22+7.5+15 320 80
J2ZH2800-600-225 ZJ-2800DV1 ZJ-600DV1 H-225DV 2800 22+7.5+15 320 100
J2ZH2800-1000-300 ZJ-2800DV1 ZJ-1000DV1 H-300DV 2800 22+11+22 320 100
J2ZH2800-1000-400 ZJ-2800DV1 ZJ-1000DV1 H-400DV 2800 22+11+30 320 125
J2ZH2800-1200-600 ZJ-2800DV1 ZJ-1200DV1 H-600DV 2800 22+11+45 320 150
J2ZH2800-1000-2×150 ZJ-2800DV1 ZJ-1000DV1 2×H-150DV 2800 22+11+2×11 320 2×80
J2ZH2800-1000-2×160 ZJ-2800DV1 ZJ-1000DV1 2×H-160DV 2800 22+11+2×11 320 2×80
J2ZH2800-1000-2×215 ZJ-2800DV1 ZJ-1200DV1 2×H-215DV 2800 22+11+2×15 320 2×80
J2ZH2800-1000-2×225 ZJ-2800DV1 ZJ-1200DV1 2×H-225DV 2800 22+11+2×15 320 2×100
J2ZH4000-1200-300 ZJ-4000DV1 ZJ-1200DV1 H-300DV 4000 30+11+22 320 100
J2ZH4000-1200-400 ZJ-4000DV1 ZJ-1200DV1 H-400DV 4000 30+11+30 320 125
J2ZH4000-1200-600 ZJ-4000DV1 ZJ-1200DV1 H-600DV 4000 30+11+45 320 150
J2ZH4000-1000-2×150 ZJ-4000DV1 ZJ-1000DV1 2×H-150DV 4000 30+11+2×11 320 2×80
J2ZH4000-1000-2×160 ZJ-4000DV1 ZJ-1000DV1 2×H-160DV 4000 30+11+2×11 320 2×80
J2ZH4000-1200-2×215 ZJ-4000DV1 ZJ-1200DV1 2×H-215DV 4000 30+11+2×15 320 2×80
J2ZH4000-1200-2×225 ZJ-4000DV1 ZJ-1200DV1 2×H-225DV 4000 30+11+2×15 320 2×100
J2ZH4000-1200-2×300 ZJ-4000DV1 ZJ-1200DV1 2×H-300DV 4000 30+11+2×22 320 2×100
J2ZH5500-1200-300 ZJ-5500DV1 ZJ-1200DV1 H-300DV 5500 37+11+22 400 100
J2ZH5500-1200-400 ZJ-5500DV1 ZJ-1200DV1 H-400DV 5500 37+11+30 400 125
J2ZH5500-2000-600 ZJ-5500DV1 ZJ-1200DV1 H-600DV 5500 37+11+45 400 150
J2ZH5500-1200-2×215 ZJ-5500DV1 ZJ-1200DV1 2×H-215DV 5500 37+11+2×15 400 2×80
J2ZH5500-1200-2×225 ZJ-5500DV1 ZJ-1200DV1 2×H-225DV 5500 37+11+2×15 400 2×100
J2ZH5500-2000-2×300 ZJ-5500DV1 ZJ-2000DV1 2×H-300DV 5500 37+11+2×22 400 2×100
J2ZH5500-2000-2×400 ZJ-5500DV1 ZJ-2000DV1 2×H-400DV 5500 37+11+2×30 400 2×125
J2ZH5500-2000-2×600 ZJ-5500DV1 ZJ-2000DV1 2×H-600DV 5500 37+11+2×45 400 2×150
One Roots with 2-Stage Water (Liquid) Ring Vacuum Pump Systems
Model Main Pump Backing Pump

Ultimate Pressure

(Pa)

Displacement

(L/s)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
Water Ring Oil Ring
JZ2S70-35 ZJ-70DV1 2SK-2 300 80 70 1.1+5.5 80 40/50
JZ2S70-50 ZJ-70DV1 2SK-3 70 1.1+7.5 80 50
JZ2S150-100 ZJ-150DV1 2SK-6 150 3+11 100 50
JZ2S300-200 ZJ-300DV1 2SK-12 300 4+22 160 80
JZP2S600-400 ZJ-600DV1 2SK-25 600 7.5+45 200 100
JZ2S1000-500 ZJ-1000DV1 2SK-30 1000 11+55 200 100
JZP2S1200-500 ZJ-1200DV1 2SK-30 1200 11+55 250 100
JZP2S1200-700 ZJ-1200DV1 2SK-42 1200 11+75 250 100

Two Roots with 2-Stage Water (Liquid) Ring Vacuum Pump Systems

Model Main Pump Middle Pump Backing Pump

Ultimate Pressure

(Pa)

Displacement

(L/s)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
Water Ring Oil Ring
J2Z2S220-70-35 ZJ-220DV1 ZJ-70DV1 2SK-2 40 1 220 3+1.1+5.5 100 40/50
J2Z2S220-70-50 ZJ-220DV1 ZJ-70DV1 2SK-3 220 3+1.1+7.5 100 50
J2Z2S300-70-50 ZJ-300DV1 ZJ-70DV1 2SK-3 300 4+1.1+7.5 160 50
J2Z2S300-150-100 ZJ-300DV1 ZJ-150DV1 2SK-6 300 4+3+11 160 50
J2ZP2S600-150-100 ZJP-600DV1 ZJ-150DV1 2SK-6 600 7.5+3+11 200 50
J2ZP2S600-300-200 ZJP-600DV1 ZJ-300DV1 2SK-12 600 7.5+4+22 200 80
J2ZP2S1200-300-200 ZJP-1200DV1 ZJ-300DV1 2SK-12 1200 11+4+22 250 80
J2ZP2S1200-600-400 ZJP-1200DV1 ZJP-600DV1 2SK-25 1200 11+7.5+45 250 100
J2Z2S2000-600-400 ZJ-2000DV1 ZJP-600DV1 2SK-25 2000 15+7.5+45 250 100
J2Z2S2000-1000-500 ZJ-2000DV1 ZJ-1000DV1 2SK-30 2000 15+11+55 250 100
J2Z2S2000-1000-700 ZJ-2000DV1 ZJ-1000DV1 2SK-42 2000 15+11+75 250 100
J2ZP2S2500-600-400 ZJP-2500DV1 ZJP-600DV1 2SK-25 2500 22+7.5+45 320 100
J2ZP2S2500-1000-500 ZJP-2500DV1 ZJ-1000DV1 2SK-30 2500 22+11+55 320 100
J2ZP2S2500-1200-700 ZJP-2500DV1 ZJP-1200DV1 2SK-42 2500 22+11+75 320 100

Three Roots with 2-Stage Water (Liquid) Ring Vacuum Pump Systems

Model Main Pump Middle Pump Middle Pump Backing Pump

Ultimate Pressure

(Pa)

Displacement

(L/s)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
Water Ring Oil Ring
J3Z2S300-150-70-50 ZJ-300DV1 ZJ-150DV1 ZJ-70DV1 2SK-3 1 0.5 300 4+3+1.1+7.5 160 50
J3ZP2S600-150-70-50 ZJP-600DV1 ZJ-150DV1 ZJ-70DV1 2SK-3 600 7.5+3+1.1+7.5 200 50
J3ZP2S600-220-150-100 ZJP-600DV1 ZJ-220DV1 ZJ-150DV1 2SK-6 600 7.5+3+3+11 200 50
J3ZP2S1200-300-150-100 ZJP-1200DV1 ZJ-300DV1 ZJ-150DV1 2SK-6 1200 11+4+3+11 250 50
J3ZP2S1200-600-300-200 ZJP-1200DV1 ZJP-600DV1 ZJ-300DV1 2SK-12 1200 11+7.5+4+22 250 80
J3ZP2S2500-600-300-200 ZJP-2500DV1 ZJP-600DV1 ZJ-300DV1 2SK-12 2500 22+7.5+4+22 320 80
J3ZP2S2500-1200-600-400 ZJP-2500DV1 ZJP-1200DV1 ZJP-600DV1 2SK-25 2500 22+11+7.5+45 320 100
J3ZP2S2500-1200-600-500 ZJ-2500DV1 ZJP-1200DV1 ZJP-600DV1 2SK-30 2500 22+11+7.5+55 320 100
J3Z2S4000-1200-600-400 ZJ-4000DV1 ZJP-1200DV1 ZJP-600DV1 2SK-25 4000 30+11+7.5+45 320 100
J3Z2S4000-1200-600-500 ZJ-4000DV1 ZJP-1200DV1 ZJP-600DV1 2SK-30 4000 30+11+7.5+55 320 100
J3Z2S4000-2000-1200-700 ZJP-4000DV1 ZJ-2000DV1 ZJP-1200DV1 2SK-42 4000 30+15+11+75 320 100
J3Z2S5500-1200-600-500 ZJ-5500DV1 ZJP-1200DV1 ZJP-600DV1 2SK-30 5500 37+11+7.5+55 400 100
J3Z2S5500-2000-1200-700 ZJ-5500DV1 ZJ-2000DV1 ZJP-1200DV1 2SK-42 5500 37+15+11+75 400 100

ROOTS WITH SCREW DRY VACUUM PUMP SYSTEMS

One Roots with Screw Dry Vacuum Pump Systems

Model

Main Pump

Backing Pump

Displacement

(L/s, 50Hz)

Ultimate Total Pressure

(Pa)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
JZSV70-35 ZJ-70DV1 SVP-35 70 0.5 1.1+3 80 40
JZSV150-35 ZJ-150DV1 SVP-35 150 2.2+3 100 40
JZSVI220-40 ZJ-220DV1 SVPI-40 220 3+3 100 40
JZSVI220-50 ZJ-220DV1 SVPI-50 220 3+4 100 40
JZSVI300-50 ZJ-300DV1 SVPI-50 300 4+4 160 40
JZSV300-80 ZJ-300DV1 SVP-80 300 4+5.5 160 50
JZSVI300-80 ZJ-300DV1 SVPI-80 300 4+5.5 160 50
JZSVI300-120 ZJ-300DV1 SVPI-120 300 4+7.5 160 50
JZSV300-150 ZJ-300DV1 SVP-150 300 4+11 160 63
JZSVI600-120 ZJ-600DV1 SVPI-120 600 7.5+7.5 200 50
JZSV600-150 ZJ-600DV1 SVP-150 600 7.5+11 200 63
JZSVI600-160 ZJ-600DV1 SVPI-160 600 7.5+11 200 63
JZSV600-200 ZJ-600DV1 SVP-200 600 7.5+15 200 80
JZSVI600-220 ZJ-600DV1 SVPI-220 600 7.5+15 200 80
JZSV600-300 ZJ-600DV1 SVP-300 600 7.5+22 200 100
JZSV1000-200 ZJ-1000DV1 SVP-200 1000 11+15 200 80
JZSVI1000-220 ZJ-1000DV1 SVPI-220 1000 11+15 200 80
JZSV1000-300 ZJ-1000DV1 SVP-300 1000 11+22 200 100
JZSVI1000-330 ZJ-1000DV1 SVPI-330 1000 11+22 200 100
JZSV1000-400 ZJ-1000DV1 SVP-400 1000 11+30 200 100
JZSV1200-200 ZJ-1200DV1 SVP-200 1200 11+15 250 80
JZSVI1200-220 ZJ-1200DV1 SVPI-220 1200 11+15 250 80
JZSV1200-300 ZJ-1200DV1 SVP-300 1200 11+22 250 100
JZSVI1200-330 ZJ-1200DV1 SVPI-300 1200 11+22 250 100
JZSV1200-400 ZJ-1200DV1 SVP-400 1200 11+30 250 100
JZSV2000-300 ZJ-2000DV1 SVP-300 2000 15+22 250 100
JZSVI2000-330 ZJ-2000DV1 SVPI-330 2000 15+22 250 100
JZSV2000-400 ZJ-2000DV1 SVP-400 2000 15+30 250 100
JZSVI2000-450 ZJ-2000DV1 SVPI-450 2000 15+30 250 100
JZPSV2500-400 ZJP-2500DV1 SVP-400 2500 22+30 320 100
JZPSVI2500-450 ZJP-2500DV1 SVPI-450 2500 22+30 320 100
JZPSVI2500-600 ZJP-2500DV1 SVPI-600 2500 22+37 320 125
JZSV2800-400 ZJ-2800DV1 SVP-400 2800 22+30 320 100
JZSVI2800-450 ZJ-2800DV1 SVPI-450 2800 22+30 320 100
JZSVI2800-600 ZJ-2800DV1 SVPI-600 2800 22+37 320 125
JZSV4000-400 ZJ-4000DV1 SVP-400 4000 30+30 320 100
JZSVI4000-450 ZJ-4000DV1 SVPI-450 4000 30+30 320 100
JZSVI4000-600 ZJ-4000DV1 SVPI-600 4000 30+37 320 125
JZSV4000-2×400 ZJ-4000DV1 2×SVP-400 4000 30+2×30 320 2×100
JZSVI4000-2×450 ZJ-4000DV1 2×SVPI-450 4000 30+2×30 320 2×100
JZSVI5500-2×450 ZJ-5500DV1 SVPI-450 5500 37+2×30 400 2×100
JZSVI5500-600 ZJ-5500DV1 SVPI-600 5500 37+37 400 125
JZSVI5500-2×600 ZJ-5500DV1 2×SVPI-600 5500 37+2×37 400 2×125

Two Roots with Screw Dry Vacuum Pump Systems

Model

Main Pump

Middle Pump

Backing Pump

Displacement

(L/s, 50Hz)

Ultimate Total Pressure

(Pa)

Motor Power

(kW)

Suction

(mm)

Discharge

(mm)
J2ZSV220-70-35 ZJ-220DV1 ZJ-70DV1 SVP-35 220 0.1 3+1.1+3 100 40
J2ZSV300-70-35 ZJ-300DV1 ZJ-70DV1 SVP-35 300 4+1.1+3 160 40
J2ZSV300-150-80 ZJ-300DV1 ZJ-150DV1 SVP-80 300 4+2.2+5.5 160 50
J2ZSV600-150-80 ZJ-600DV1 ZJ-150DV1 SVP-80 600 7.5+2.2+5.5 200 50
J2ZSV1000-220-80 ZJ-1000DV1 ZJ-220DV1 SVP-80 1000 11+3+5.5 200 50
J2ZSVI1200-300-120 ZJ-1200DV1 ZJ-300DV1 SVPI-120 1200 11+3+7.5 250 50
J2ZSV1200-300-150 ZJ-1200DV1 ZJ-300DV1 SVP-150 1200 11+3+11 250 63
J2ZSV2000-600-150 ZJ-2000DV1 ZJ-600DV1 SVP-150 2000 15+7.5+11 250 63
J2ZSVI2000-600-160 ZJ-2000DV1 ZJ-600DV1 SVPI-160 2000 15+7.5+11 250 63
J2ZSV2000-600-200 ZJ-2000DV1 ZJ-600DV1 SVP-200 2000 15+7.5+15 250 80
J2ZSVI2000-600-220 ZJ-2000DV1 ZJ-600DV1 SVPI-220 2000 15+7.5+15 250 80
J2ZPSV2500-600-200 ZJP-2500DV1 ZJ-600DV1 SVP-200 2500 22+7.5+15 320 80
J2ZPSVI2500-600-220 ZJP-2500DV1 ZJ-600DV1 SVPI-220 2500 22+7.5+15 320 80
J2ZSV2800-600-200 ZJ-2800DV1 ZJ-600DV1 SVP-200 2800 22+7.5+15 320 80
J2ZSVI2800-600-220 ZJ-2800DV1 ZJ-600DV1 SVPI-220 2800 22+7.5+15 320 80
J2ZSV2800-1000-300 ZJ-2800DV1 ZJ-1000DV1 SVP-300 2800 22+11+22 320 100
J2ZSVI2800-1000-330 ZJ-2800DV1 ZJ-1000DV1 SVPI-330 2800 22+11+22 320 100
J2ZSV2800-1000-400 ZJ-2800DV1 ZJ-1000DV1 SVP-400 2800 22+11+30 320 100
J2ZSVI2800-1000-450 ZJ-2800DV1 ZJ-1000DV1 SVPI-450 2800 22+11+30 320 100
J2ZSV4000-1000-400 ZJ-4000DV1 ZJ-1000DV1 SVP-400 4000 30+11+30 320 100
J2ZSVI4000-1200-450 ZJ-4000DV1 ZJ-1200DV1 SVPI-450 4000 30+11+30 320 100
J2ZSV5500-1200-400 ZJ-5500DV1 ZJ-1200DV1 SVP-400 5500 37+11+30 400 100
J2ZSVI5500-1200-450 ZJ-5500DV1 ZJ-1200DV1 SVPI-450 5500 37+11+30 400 100
J2ZSVI5500-1200-600 ZJ-5500DV1 ZJ-1200DV1 SVPI-600 5500 37+11+37 400 125
J2ZSV5500-2000-2×400 ZJ-5500DV1 ZJ-2000DV1 2XSVP-400 5500 37+15+2×30 400 2×100
J2ZSVI5500-2000-2×450 ZJ-5500DV1 ZJ-2000DV1 2XSVPI-450 5500 37+15+2×30 400 2×100
J2ZSVI5500-2000-2×600 ZJ-5500DV1 ZJ-2000DV1 2XSVPI-600 5500 37+15+2×37 400 2×125





Your contact details


Contact Us
